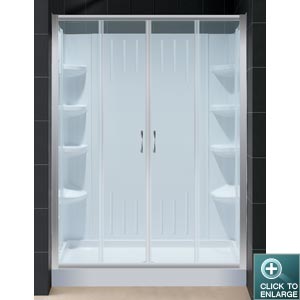

Visions Shower Door, Base & Backwall Kit

Finish Options

Combine DreamLine™ universal shower wall panels with a tub replacement AMAZON shower base and a large sliding VISIONS shower door for a complete shower kit. This kit is perfect for a bathroom remodeling or tub-to-shower conversion project and is designed to be installed over existing solid surfaces.

Shower Backwall Specifications:

6 integrated soap or accessory shelves
2 convenient corner foot rest
Made of high quality Acrylic / ABS
Unique water proof connection of 2 sidewalls, 2 corner panels and 1 back panel
Trim-to-Size sidewall design for shower bases from 29 7/8” to 40 1/2” deep. Must be trimmed during installation
Designed for height of the glass not to exceed 72 7/8"
Acrylic wall systems are designed to be installed over existing solid surface not directly against the studs

Shower Base Specifications:

Single threshold shower base
High gloss white acrylic shower base
Slip-resistant textured bottom pattern
Integrated tiling flanges
Fiberglass reinforced for durability
Shower base comes with 3 1/4 inch opening ready for standard compression fitting drain (drain not included)

Shower DOOR Specifications:

Two sliding doors
Tempered 1/4" clear or frosted glass

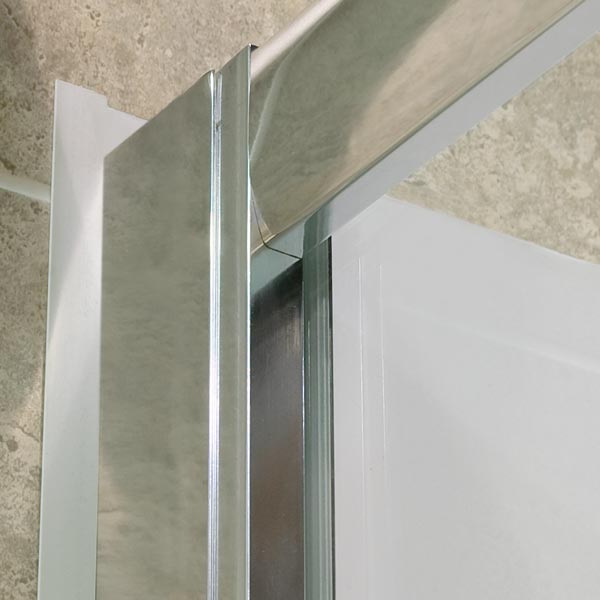

Anodized aluminum profiles and guide rails
Choice of chrome or brushed nickel finish
Adjustable between 56"-60"

Kit Model Number	Items included			Base Size	Glass Selection	Glass Code	Finish
	Door	Backwall	Base
DL-6108C	SHDR-1160726	SHBW-1360723-00	SHTR-1130600-00 Center drain	30 x 60 x 5	Clear	CL	Chrome (-01), Brushed Nickel (-04)
DL-6108L			SHTR-1130601-00 Left-hand drain
					Frosted	FR
DL-6108R			SHTR-1130602-00 Right-hand Drain
DL-6109C	SHDR-1160726		SHTR-1132600-00 Center drain	32 x 60 x 5	Clear	CL
DL-6109L			SHTR-1132601-00 Left-hand drain
					Frosted	FR
DL-6109R			SHTR-1132602-00 Right-hand Drain
DL-6110C	SHDR-1160726		SHTR-1134600-00 Center drain	34 x 60 x 5	Clear	CL
					Frosted	FR
DL-6111C	SHDR-1160726		SHTR-1136600-00 Center drain	36 x 60 x 5	Clear	CL
DL-6111L			SHTR-1136601-00 Left-hand drain
					Frosted	FR
DL-6111R			SHTR-1136602-00 Right-hand Drain
