Unidoor
Shower Door
PRODUCT SPECIFICATION
- Finished walls are required for accurate shower opening width measurement
- This model has no width (horizontal) or out of plumb (vertical) adjustment
- Frameless glass design
- Model consists of single hinged door
- Reversible for right or left door opening
- 3/8 in.(10mm) thick ANSI certified tempered glass with opaque fingerprint free frosted privacy band
- Hardware available in chrome, brushed nickel or oil rubbed bronze finish
- Solid brass self-closing hinges (with a 5 degree offset)
- Shower base is not included
- Wall studs or other reinforcement behind finished walls required for hinge installation
- Limited lifetime manufacturer warranty
- Warranty for any hardware in Oil Rubbed Bronze finish is limited to 1 (one) year
Professional installation recommended
Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor
Product Warranty:
The UNIDOOR shower door from DreamLine® is perfectly designed to accommodate today’s trends. It has a classic frameless design with three hardware finish options helping enhance any bathroom style. The UNIDOOR combines premium 3/8 in. thick ANSI certified tempered glass with a sleek frameless design for the look of custom glass at an unparalleled value. The UNIDOOR shower door collection is extremely versatile with an incredible range of sizes to accommodate finished/tiled shower openings from 23 in. to 61 in. wide and an option of clear or frosted (band) privacy glass. With clean lines, modern accents and an upscale look, the UNIDOOR shower door offers a touch of timeless style to any bathroom space. DreamLine® has the ultimate solution for your shower project.

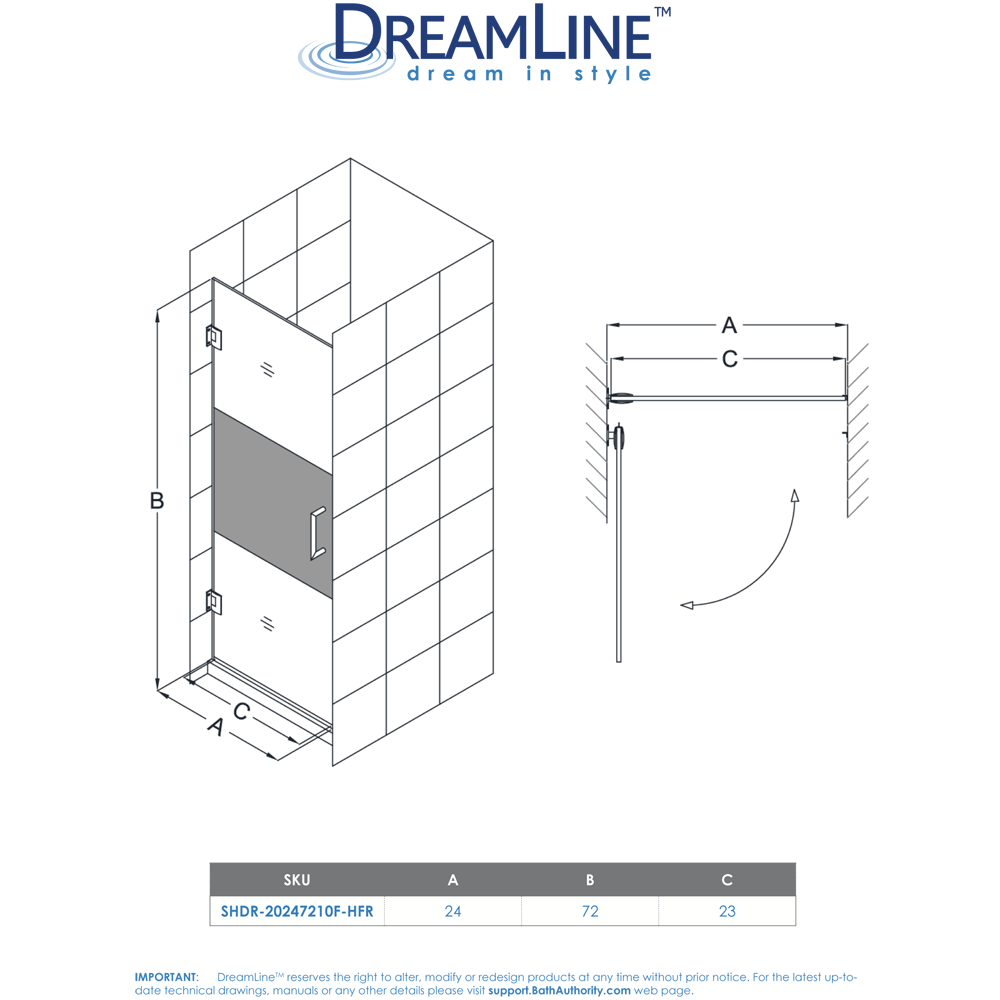

Unidoor Shower Door Half-Frosted Glass |
||||
| Opening Range | Opening Range | Opening Range | Door Width | Panel Width |
 |
SHDR-20237210F-HFR | 23" | 23" | - |
| SHDR-20247210F-HFR | 24" | 24" | - | |
| SHDR-20257210F-HFR | 25" | 25" | - | |
| SHDR-20267210F-HFR | 26" | 26" | - | |
| SHDR-20277210F-HFR | 27" | 27" | - | |
| SHDR-20287210F-HFR | 28" | 28" | - | |
| SHDR-20297210F-HFR | 29" | 29" | - | |
| SHDR-20307210F-HFR | 30" | 30" | - | |
