AquaSwing
Swing Tub Door
PRODUCT SPECIFICATION
- Finished walls are required for accurate shower opening width measurement
- Frameless glass design
- Model consists of single swing tub door
- Anodized aluminum full length pivot hinge allows a 3/8 in. out of plumb (vertical) adjustment
- Reversible for a right or left door opening (door has a convenient towel bar)
- Quality 1/4 in. (6mm) thick ANSI certified clear tempered glass
- Hardware comes in chrome finish
- Wall studs or other reinforcement behind finished walls required for hinge installation
- Professional installation recommended
- Limited Lifetime Warranty
Warranty:
Note: To minimize possible water escaping outside the bathing area, position the shower head opposite of the door opening aimed at the tiled walls, fixed glass panel or straight down towards the shower floor.
The AquaSwing tub door from DreamLine® blends a fresh look with a sophisticated frameless design for an amazing value. The AquaSwing tub door combines 1/4 in. thick ANSI certified clear tempered glass with a striking curved silhouette for a uniquely modern look. A full length pivot hinge wall profile provides a 3/8 in. out of plumb (vertical) adjustment for an easy installation and allows the door to swing in and out of the bathing area. Add a touch of brilliance to your bathroom with the gracefully curved lines of the AquaSwing tub door. DreamLine® has the ultimate solution for your shower project.

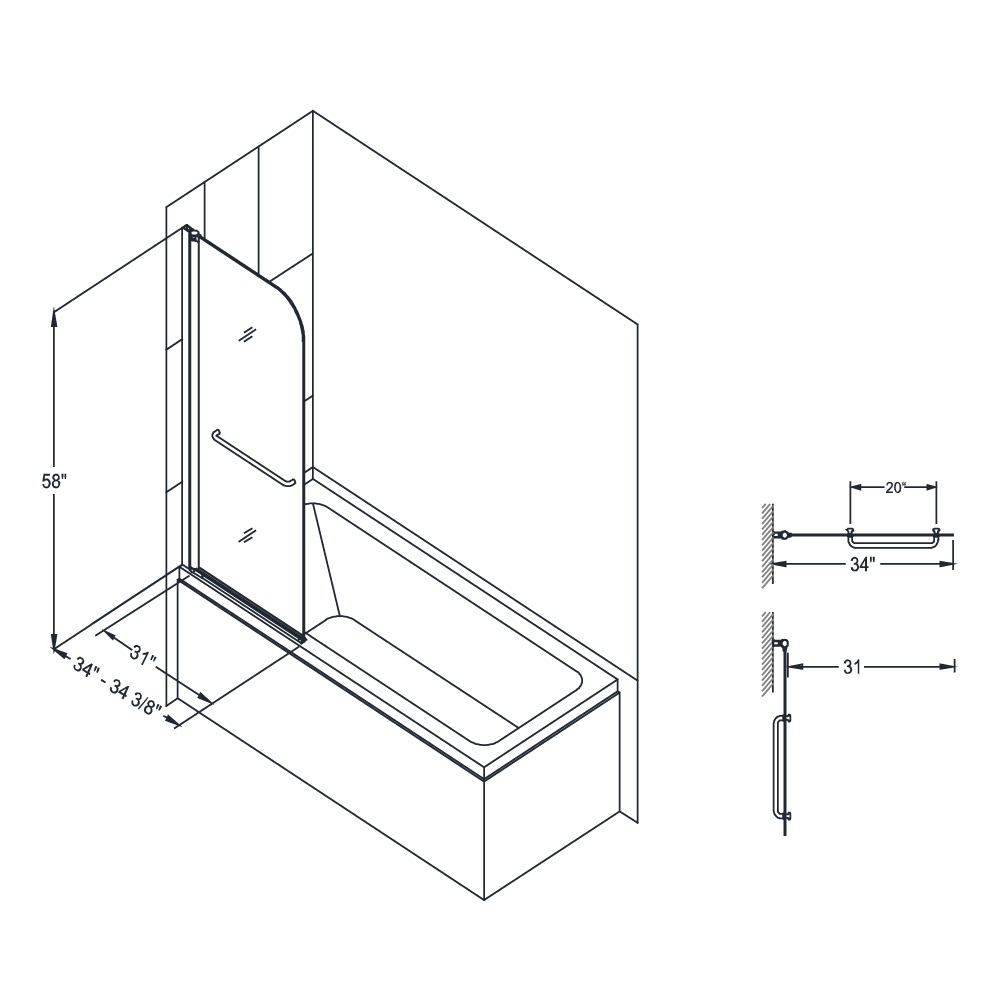

| Model Number | Door Type | Height | Width | Glass Type |
| SHDR-3734580-01 | Tub | 58" | 34" | Clear |
