Prism
Pivot Shower Enclosure
PRODUCT SPECIFICATION
- 3/8 in. (10 mm) thick clear tempered glass
- Chrome or Brushed Nickel hardware finish
- Frameless glass design
- Out-of-plumb installation adjustability: Up to 3/8 in. per side
- Pivot door with full length magnetic door latch
- Anodized aluminum wall profiles
- Reversible for right or left door opening installation
- Material: Tempered Glass, Aluminum
- Tempered glass ANSI certified
- Optional SlimLine shower base sold separately
- Limited lifetime manufacturer warranty
- Finished walls required for measurement and installation
Product Warranty:
Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor
NOTE: DreamLine Shower Enclosure dimensions are for finished opening measurements (finished/tiled walls), while DreamLine Slimline Shower Base dimensions are provided for rough opening measurements (against the studs)
BE ADVISED: DreamLine Shower Bases will always be larger (approximately 2 in.) than the corresponding DreamLine Shower Enclosures. Please, take this information under advisement when ordering your Shower Base and Shower Enclosure separately

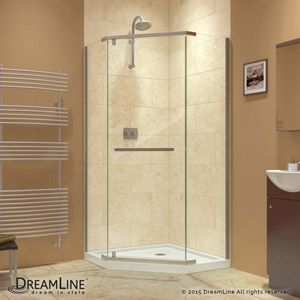

The Prism neo-angle shower enclosure is a space saver with a unique corner installation that creates a stunning focal point. This modern shower enclosure combines a clean frameless design, elegant pivot operation and premium 3/8 in. thick tempered glass. Choose the Prism shower enclosure for the centerpiece of your bathroom design.

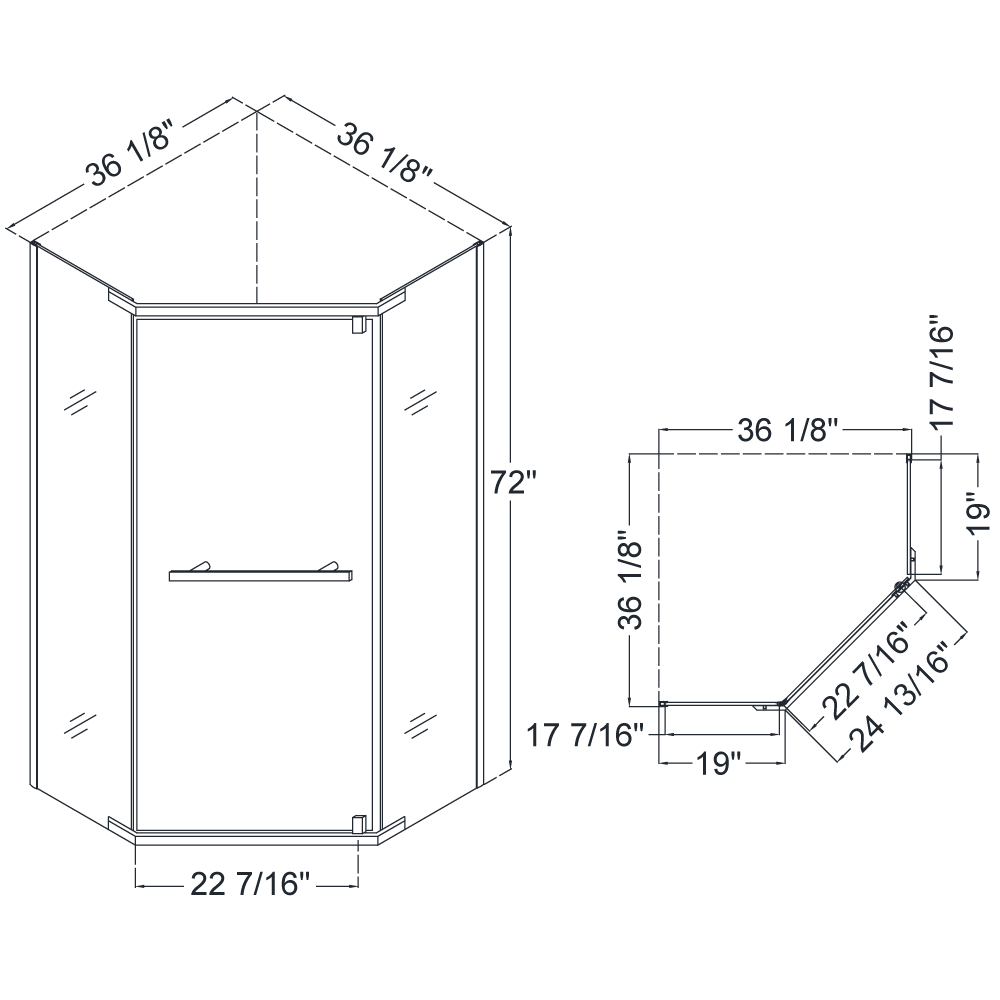

| Model Number | Glass Thickness | Size | Suggested Base |
| SHEN-2134340 | 3/8" | 34 1/8" x 34 1/8" x 72" | DLT-2036360 |
| SHEN-2136360 | 3/8" | 36 1/8" x 36 1/8" x 72" | DLT-2038380 |
| SHEN-2138380 | 3/8" | 38-1/8" x 38-1/8" x 72" | DLT-2040400 |
| SHEN-2140400 | 3/8" | 40 1/8" x 40 1/8" x 72" | DLT-2042420 |
