UnidoorLux
Hinged Shower Door
PRODUCT SPECIFICATION
- Finished walls are required for accurate shower opening width measurement
- This model has no width (horizontal) or out of plumb (vertical) adjustment
- Frameless glass design

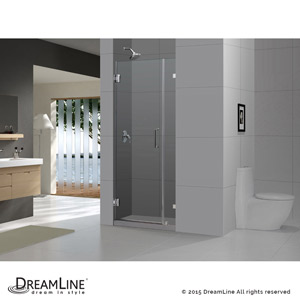

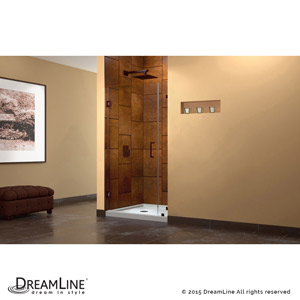

- Model consists of single hinged door and one stationary inline panel
- Reversible for a right or left door opening
- 3/8 in.(10mm) thick ANSI certified clear tempered glass

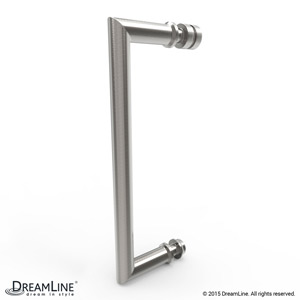

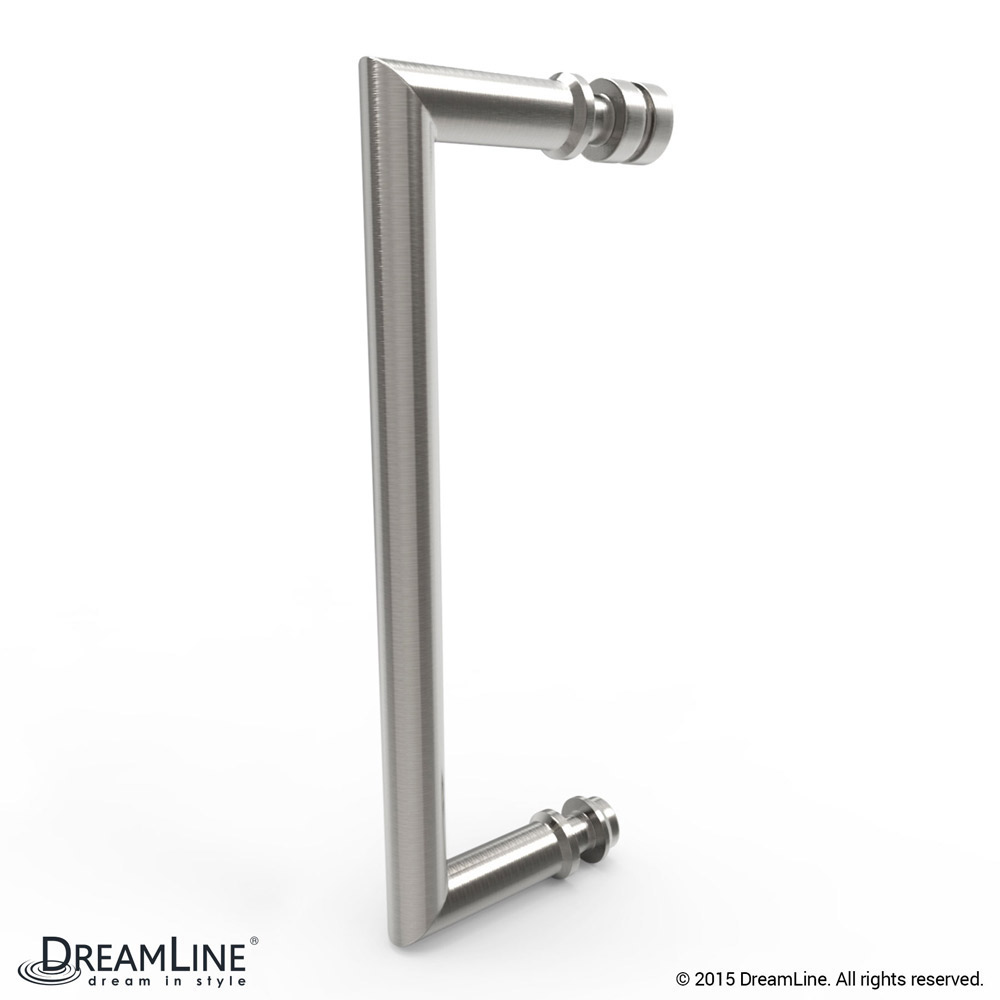

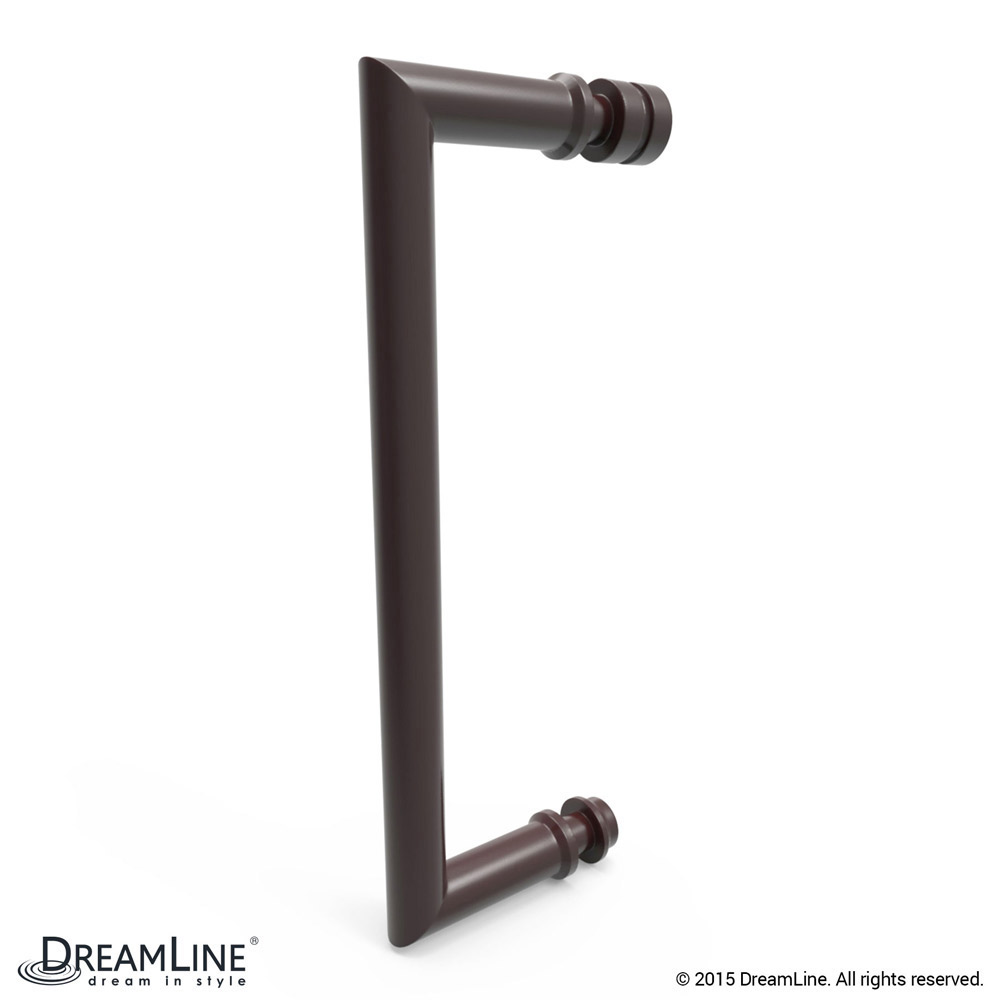

- Hardware available in chrome, brushed nickel or oil rubbed bronze finish

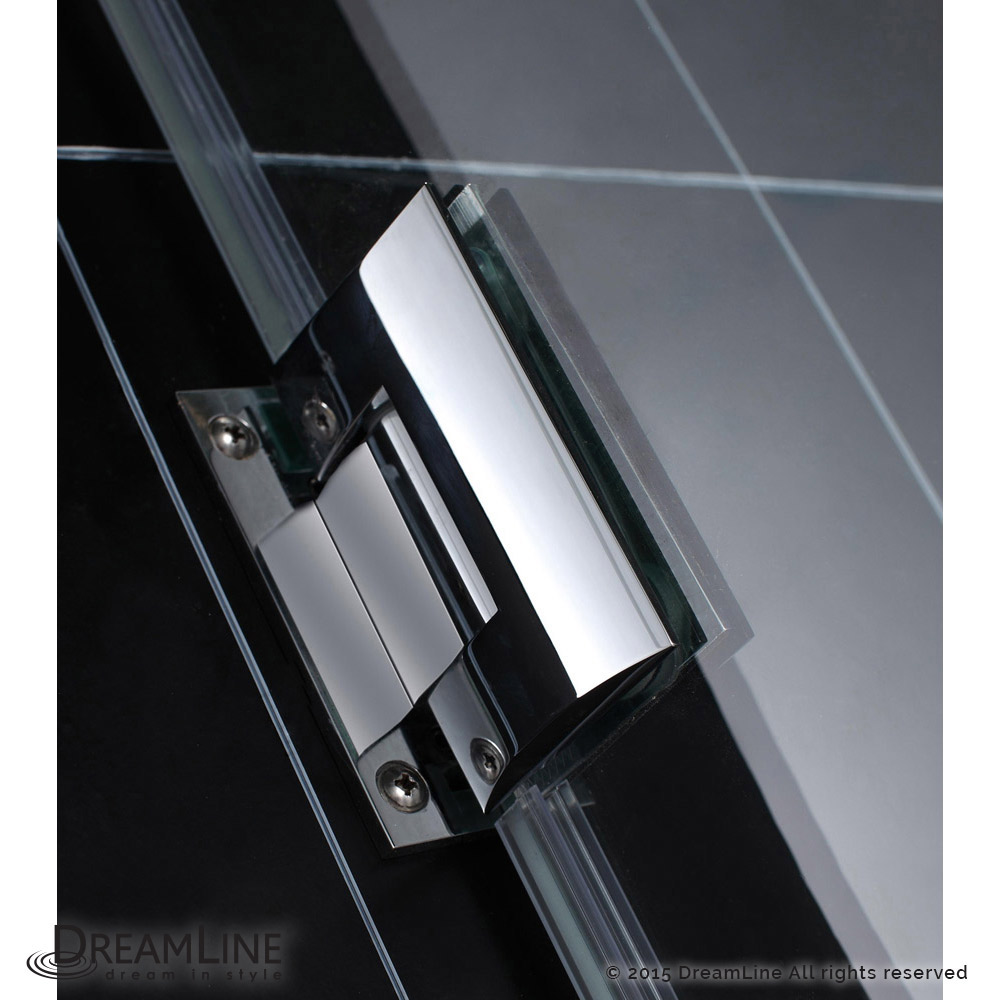

- Solid brass glass bracket hardware and self-closing hinges (with a 5 degree offset)
- Model sizes available from 29 - 60 in.
- Support bar (required) for model sizes 37 in. or wider
- Wall studs or other reinforcement behind finished walls required for hinge installation
- Professional installation recommended
- Limited lifetime manufacturer warranty
Product Warranty:
NOTE: DreamLine Shower Enclosure dimensions are for finished opening measurements (finished/tiled walls), while DreamLine SlimLine Shower Base dimensions are provided for rough opening measurements (against the studs)
BE ADVISED: DreamLine Shower Bases will always be larger (approximately 2 in.) than the corresponding DreamLine Shower Enclosures. Please, take this information under advisement when ordering your Shower Base and Shower Enclosure separately
The UNIDOORLUX shower door from DreamLine® is perfectly designed to accommodate today’s trends. It has a classic frameless design with three hardware finish options helping it enhance any bathroom style and affordable on any budget. The UNIDOORLUX shower door combines premium 3/8 in. thick ANSI certified tempered glass with a sleek frameless design for the look of custom glass at an unparalleled value. The UNIDOORLUX shower door collection is extremely versatile with an incredible range of sizes to accommodate finished/tiled shower openings from 23 in. to 61 in. wide. With clean lines, modern accents and an upscale look, the UNIDOORLUX gives a touch of timeless style to any bathroom space. DreamLine® has the ultimate solution for your shower project.
for individual technical drawing
UnidoorLux shower door 29" - 60" |
||||||
| Configuration | Model Number | Opening Width | Door Width | Panel Width | ||
 6" stationary panel |
 SHDR-23297210 |
29" | 23" | 6" | ||
 SHDR-23307210 |
30" | 24" | 6" | |||
 SHDR-23317210 |
31" | 25" | 6" | |||
 SHDR-23327210 |
32" | 26" | 6" | |||
 SHDR-23337210 |
33" | 27" | 6" | |||
 SHDR-23347210 |
34" | 28" | 6" | |||
 SHDR-23357210 |
35" | 29" | 6" | |||
 SHDR-23367210 |
36" | 30" | 6" | |||
 14" stationary panel |
 SHDR-23377210 |
37" | 23" | 14" | ||
 SHDR-23387210 |
38" | 24" | 14" | |||
 SHDR-23397210 |
39" | 25" | 14" | |||
 SHDR-23407210 |
40" | 26" | 14" | |||
 SHDR-23417210 |
41" | 27" | 14" | |||
 SHDR-23427210 |
42" | 28" | 14" | |||
 SHDR-23437210 |
43" | 29" | 14" | |||
 SHDR-23447210 |
44" | 30" | 14" | |||
 22" stationary panel |
 SHDR-23457210 |
45" | 23" | 22" | ||
 SHDR-23467210 |
46" | 24" | 22" | |||
 SHDR-23477210 |
47" | 25" | 22" | |||
 SHDR-23487210 |
48" | 26" | 22" | |||
 SHDR-23497210 |
49" | 27" | 22" | |||
 SHDR-23507210 |
50" | 28" | 22" | |||
 SHDR-23517210 |
51" | 29" | 22" | |||
 SHDR-23527210 |
52" | 30" | 22" | |||
|
30" stationary panel |
 SHDR-23537210 |
53" | 23" | 30" | ||
 SHDR-23547210 |
54" | 24" | 30" | |||
 SHDR-23557210 |
55" | 25" | 30" | |||
 SHDR-23567210 |
56" | 26" | 30" | |||
 SHDR-23577210 |
57" | 27" | 30" | |||
 SHDR-23587210 |
58" | 28" | 30" | |||
 SHDR-23597210 |
59" | 29" | 30" | |||
 SHDR-23607210 |
60" | 30" | 30" | |||
