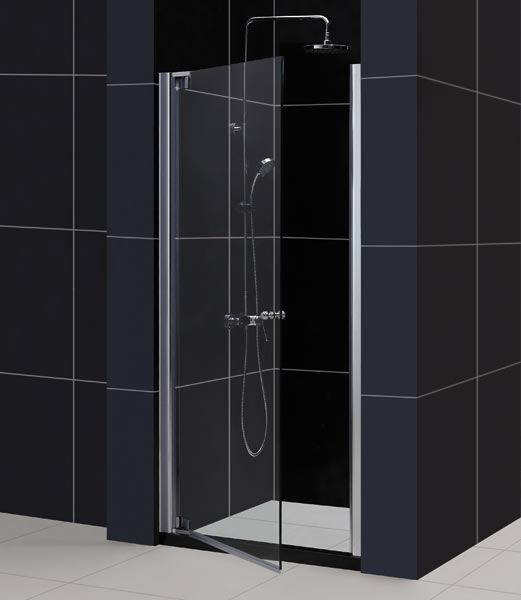

Elegance
Pivot Shower Door
PRODUCT SPECIFICATION
- 3/8 in. (10 mm) thick clear tempered glass
- Chrome, Brushed Nickel or Oil Rubbed Bronze hardware finish
- Frameless glass design
- Out-of-plumb installation adjustability: Up to 1 in. per side
- Frameless glass pivot shower door design
- Elegant pivot mechanism and anodized aluminum wall profiles
- Reversible for right or left door opening installation
- Finished walls required for measurement and installation
- Material: Tempered Glass, Aluminum, Brass
- Tempered glass ANSI certified
- Shower base is not included
- Finished walls required for measurement and installation
- Limited lifetime manufacturer warranty
- Warranty for any hardware in Oil Rubbed Bronze finish is limited to 1 (one) year
Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or floor
Professional installation recommended
The Elegance pivot shower door combines a modern frameless glass design with premium 3/8 in. thick tempered glass for a high end look at an excellent value. The collection is extremely versatile, with options to fit a wide range of width openings from 25-1/4 in. up to 61-3/4 in.; Smart wall profiles make for an easy and adjustable installation for a perfect fit.
Click on door model number or
for individual technical drawing
Suggested Bases
for individual technical drawing | Shower Door w/Handle | Width Range | Base Size |
 SHDR-4125720 | 25 1/4" - 27 1/4" | - |
 SHDR-4127720 | 27" - 29" | - |

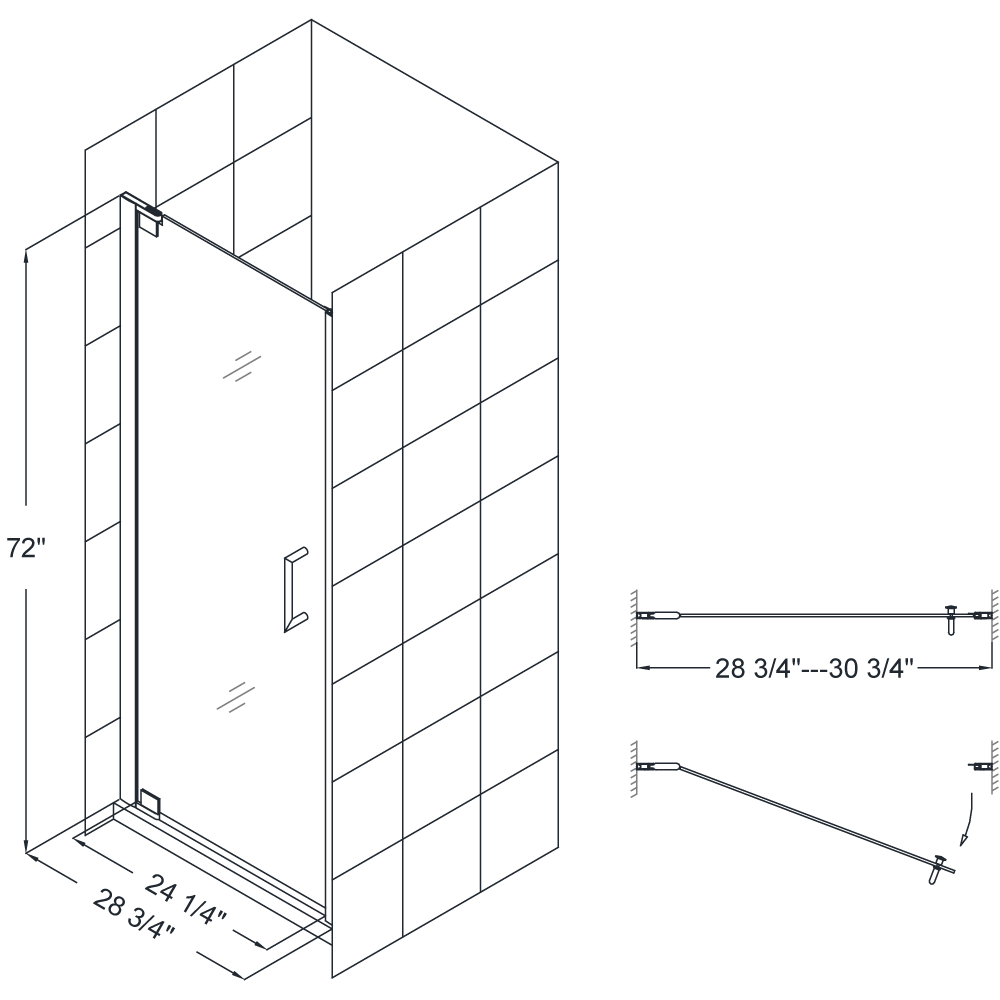

 SHDR-4128720 | 28 3/4" - 30 3/4" | 32" x 32" |
 SHDR-4130720 | 30 1/2" - 32 1/2" | - |
 SHDR-4132720 | 32 1/4" - 34 1/4" | - |
 SHDR-4134720 | 34" - 36" | 36" x 36" |

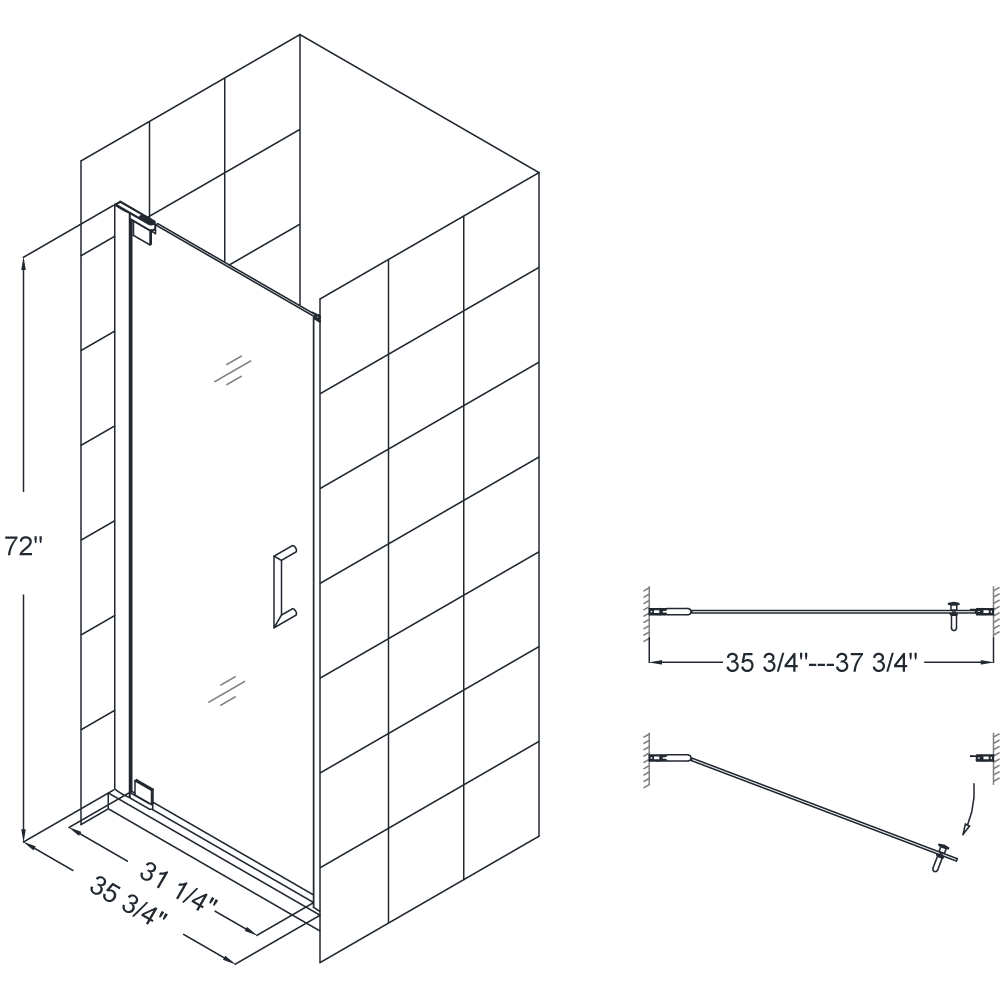

 SHDR-4135720 | 35 3/4" - 37 3/4" | - |
 SHDR-4137720 | 37 1/4" - 39 1/4" | - |

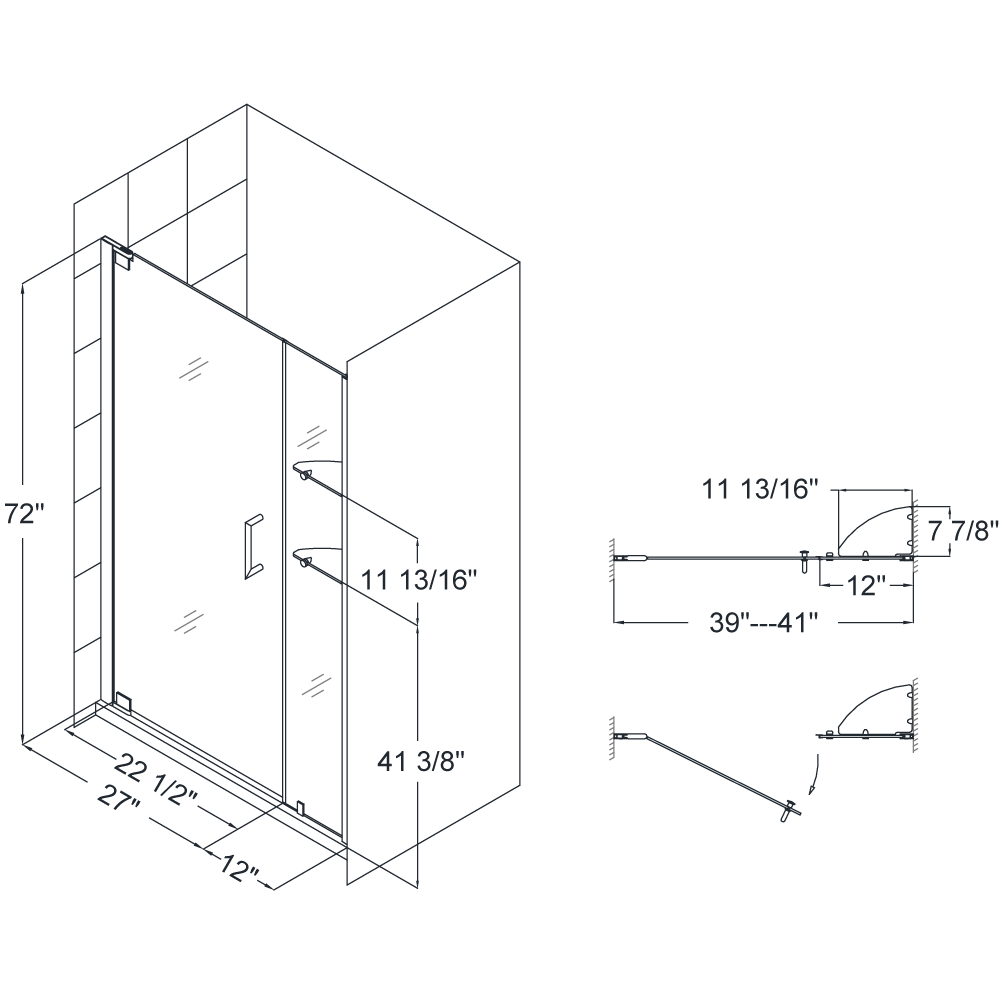

 SHDR-4139720 | 39" - 41" | - |
 SHDR-4140720 | 40 3/4" - 42 3/4" | - |
 SHDR-4142720 | 42 1/2" - 44 1/2" | - |

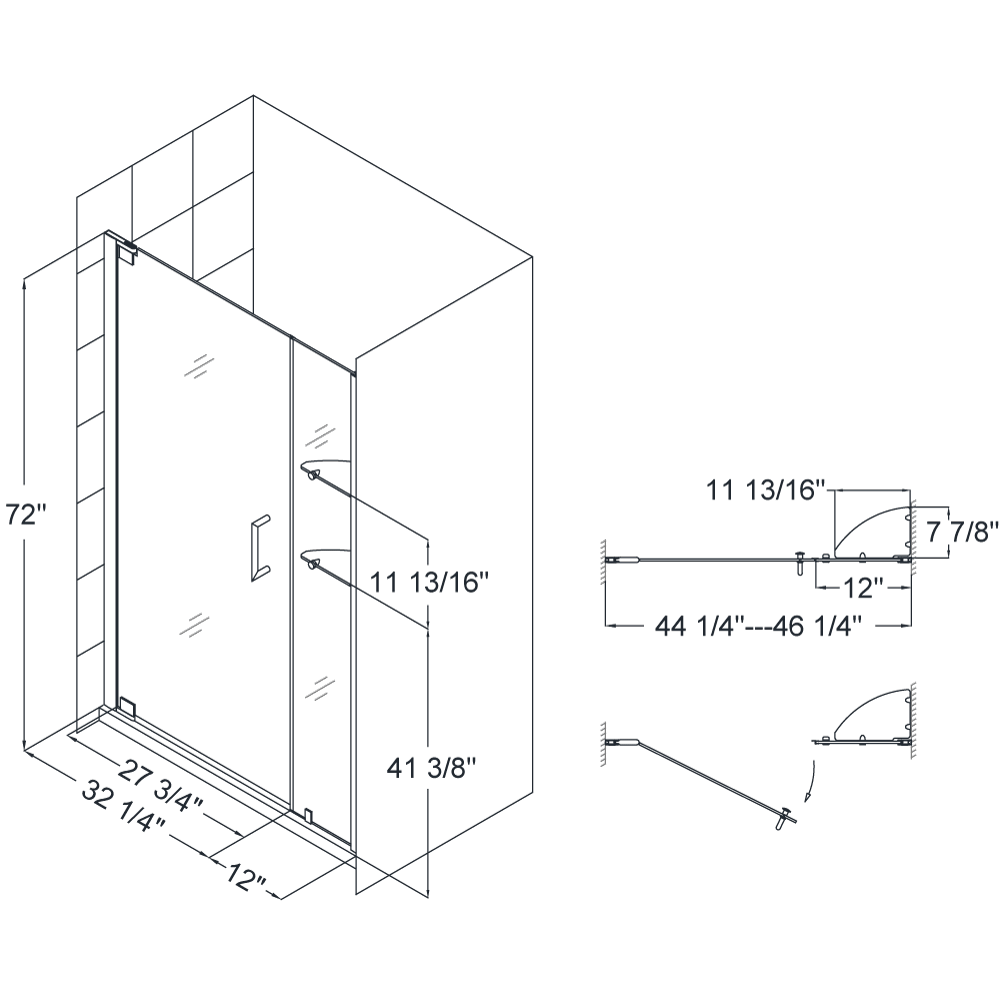

 SHDR-4144720 | 44 1/4" - 46 1/4" | - |
 SHDR-4146720 | 46" - 48" | 36" x 48" |
 SHDR-4147720 | 47 3/4" - 49 3/4" | - |
 SHDR-4149720 | 49 1/4" - 51 1/4" | - |
 SHDR-4151720 | 51" - 53" | - |

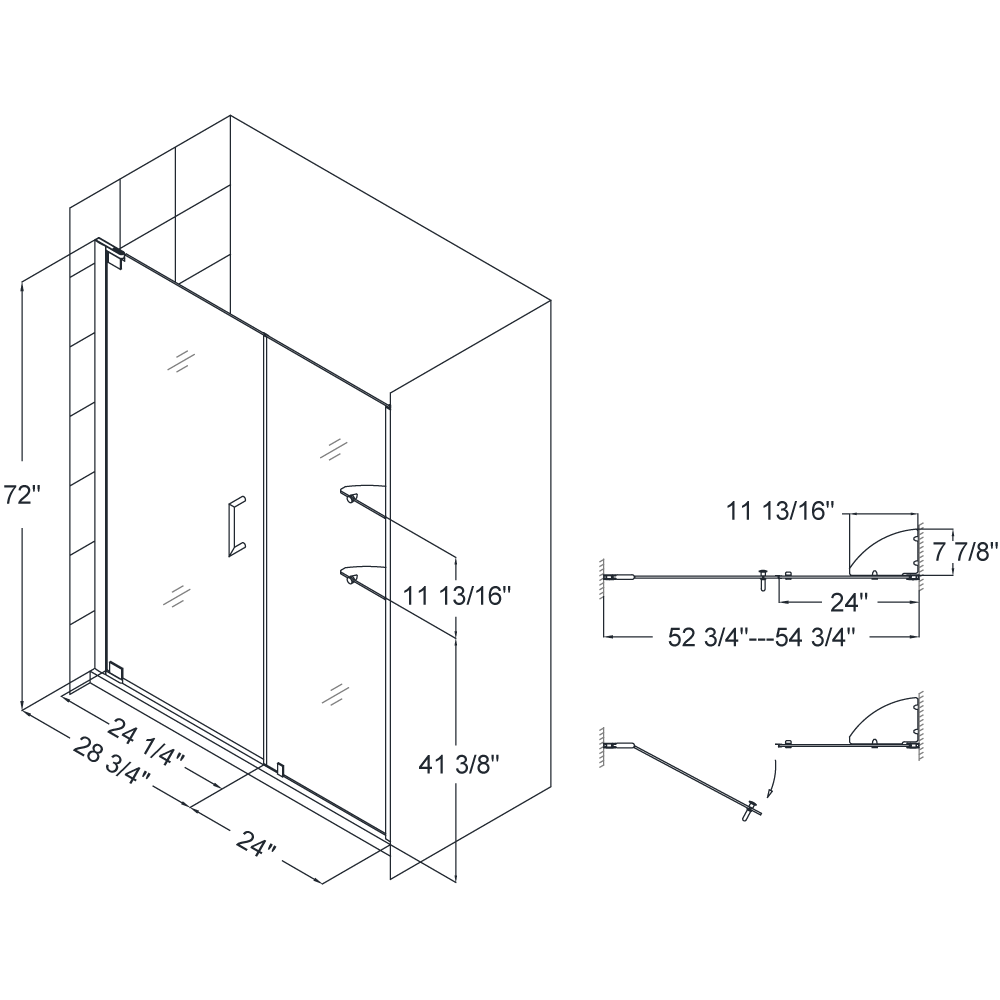

 SHDR-4152720 | 52 3/4" - 54 3/4" | - |
 SHDR-4154720 | 54 1/2" - 56 1/2" | - |
 SHDR-4156720 | 56 1/4" - 58 1/4" | - |
 SHDR-4158720 | 58" - 60" | 30" x 60" 30" x 60" 30" x 60" 32" x 60" 34" x 60" 36" x 60" |

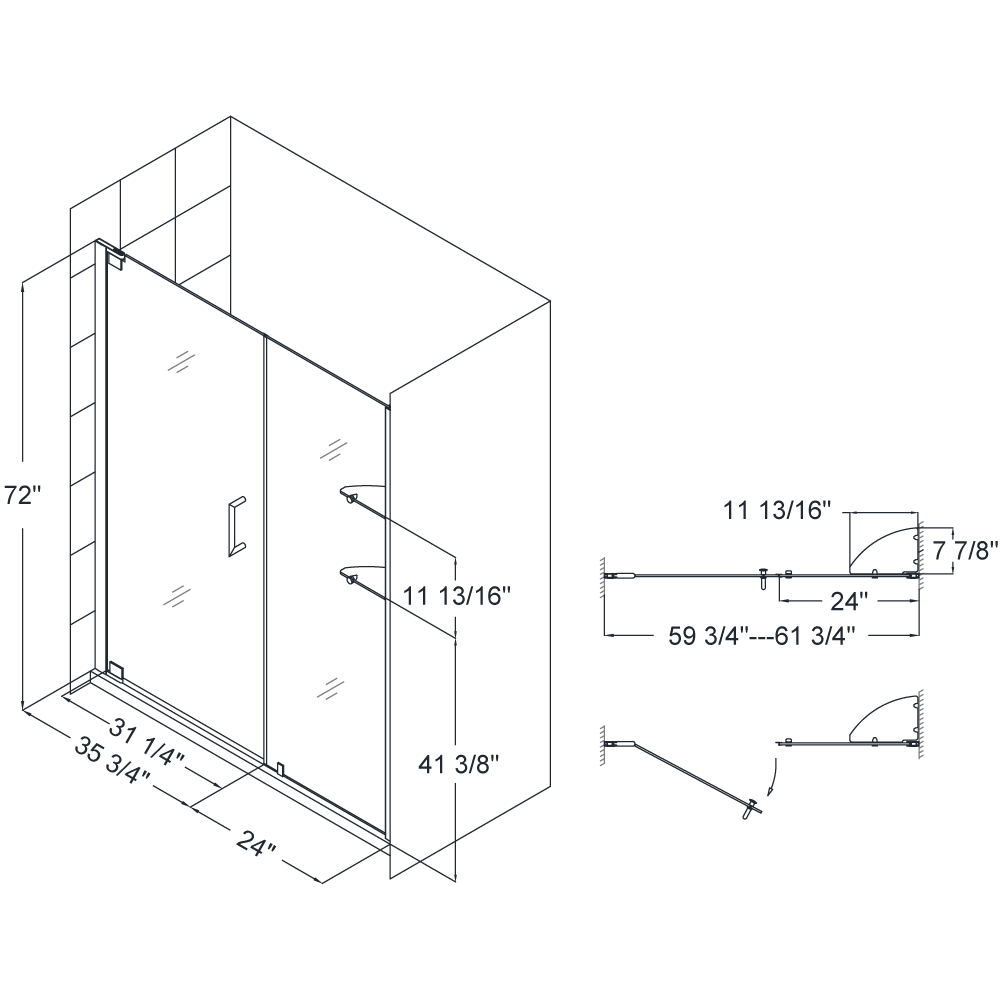

 SHDR-4159720 | 59 3/4" - 61 3/4" | - |
| Shower Door Model Number | Dimensions D X W x H | Center Drain | Left-hand Drain | Right-hand Drain |
| SHDR-4128720 | 32" x 32" x 2-3/4" | DLT-1132320 | --- | --- |
| SHDR-4134720 | 36" x 36" x 2-3/4" | DLT-1136360 | --- | --- |
| SHDR-4146720 | 36" x 48" x 2-3/4" | DLT-1136480 | --- | --- |
| SHDR-4158720 | 30" x 60" x 2-3/4" | DLT-1130600 | DLT-1130601 | DLT-1130602 |
| 32" x 60" x 2-3/4" | DLT-1132600 | DLT-1132601 | DLT-1132602 | |
| 34" x 60" x 2-3/4" | DLT-1134600 | DLT-1134601 | DLT-1134602 | |
| 36" x 60" x 2-3/4" | DLT-1136600 | DLT-1136601 | DLT-1136602 |
