QWALL-3
Shower Backwall Kit
PRODUCT SPECIFICATION
- Product Type: Shower Backwall Kit
- Color: White
- Assembly required

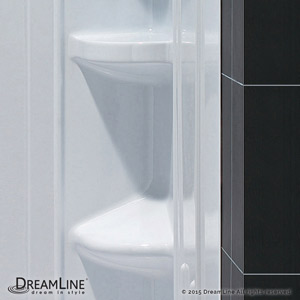

- 6 integrated corner shelves
- 2 convenient corner foot rests
- Unique water tight connection of 2 sidewalls, 2 corner panels and 1 back panel
- Trim-to-Size sidewall designed for shower base installation from 29 7/8 in. to 40 1/2 in.
- Height of glass should not exceed 72 7/8 in.
- Optional single threshold fiberglass reinforced Acrylic /ABS base
- These acrylic wall systems are specially designed to be installed over existing solid surface not directly against the studs

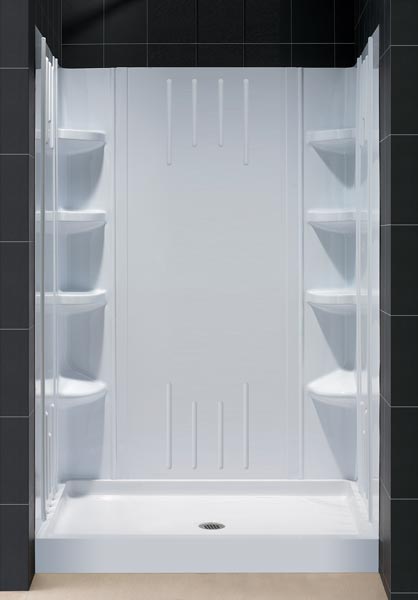

- Shown with optional base
- Limited 1 (one) year manufacturer warranty
Product Warranty:
DreamLine universal shower wall panels are both a functional and beautiful addition to any bathroom. These versatile shower wall panels are made of advanced materials and engineered with a trim-to-size fit that works with most DreamLine shower enclosures. Ceramic tile walls for shower enclosures may look good, but are very difficult and expensive to install and even tougher to take care of. DreamLine shower wall panels install in hours and are easy to maintain and enjoy for many years to come.
for individual technical drawing| Model Number | Description | Size, In. D x W x H |

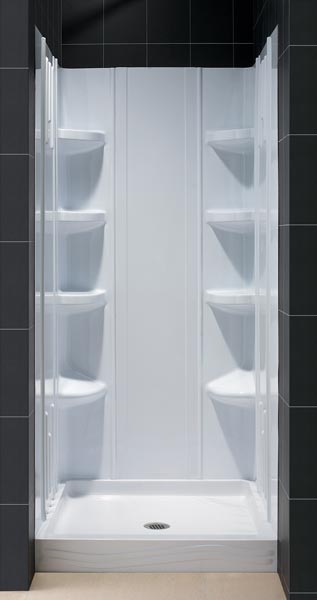

| SHBW-1332723-01 | Acrylic back wall for 32" x 32" single threshold base |
29-7/8" to 40-1/2" x 30-3/8" to 31-7/8" x 72-7/8" |

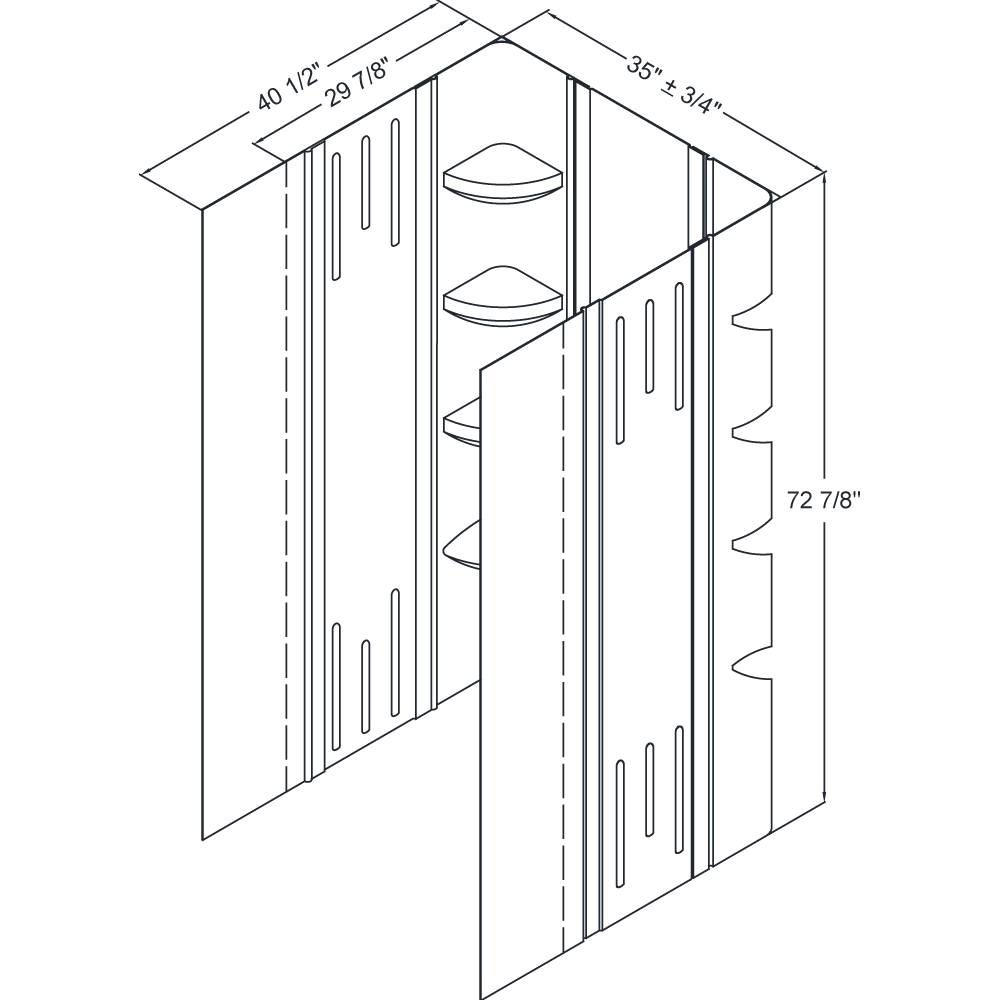

| SHBW-1336723-01 | Acrylic back wall for 36" x 36" single threshold base |
29-7/8" to 40-1/2" x 34-1/4" to 35-3/4" x 72-7/8" |

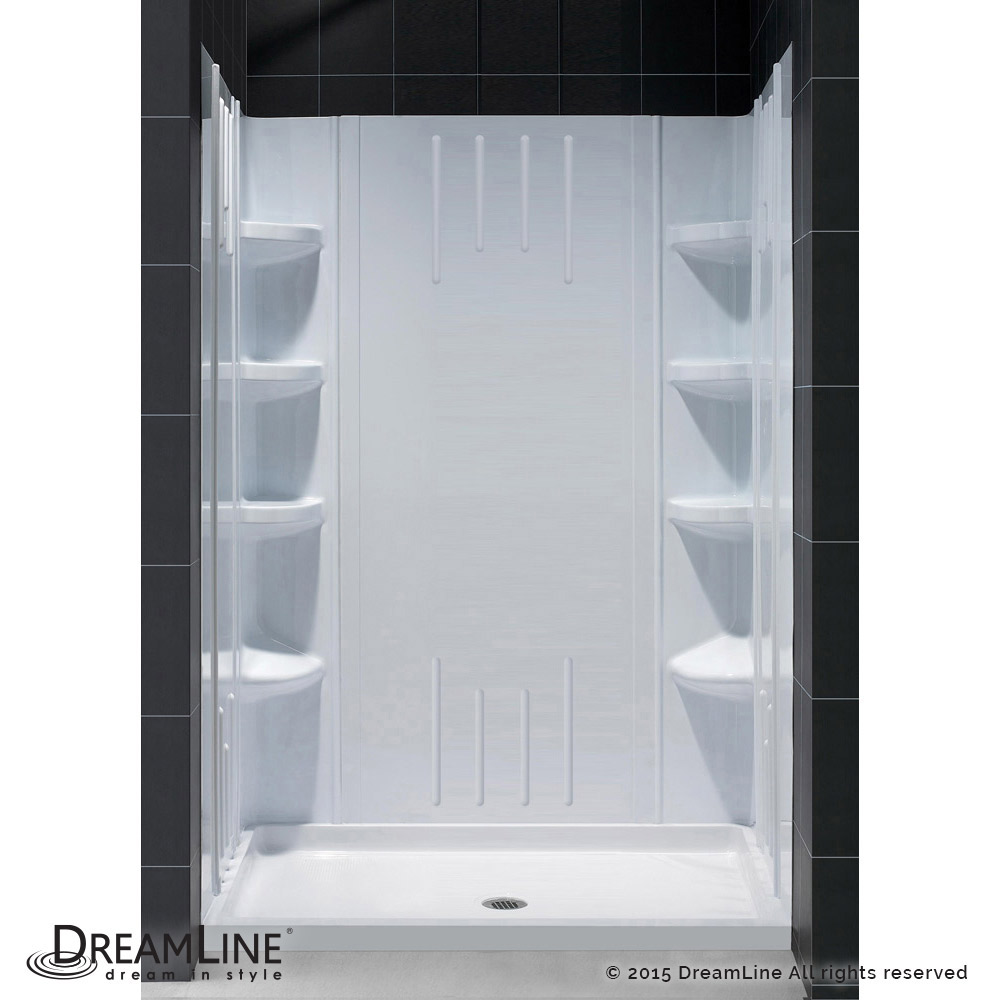

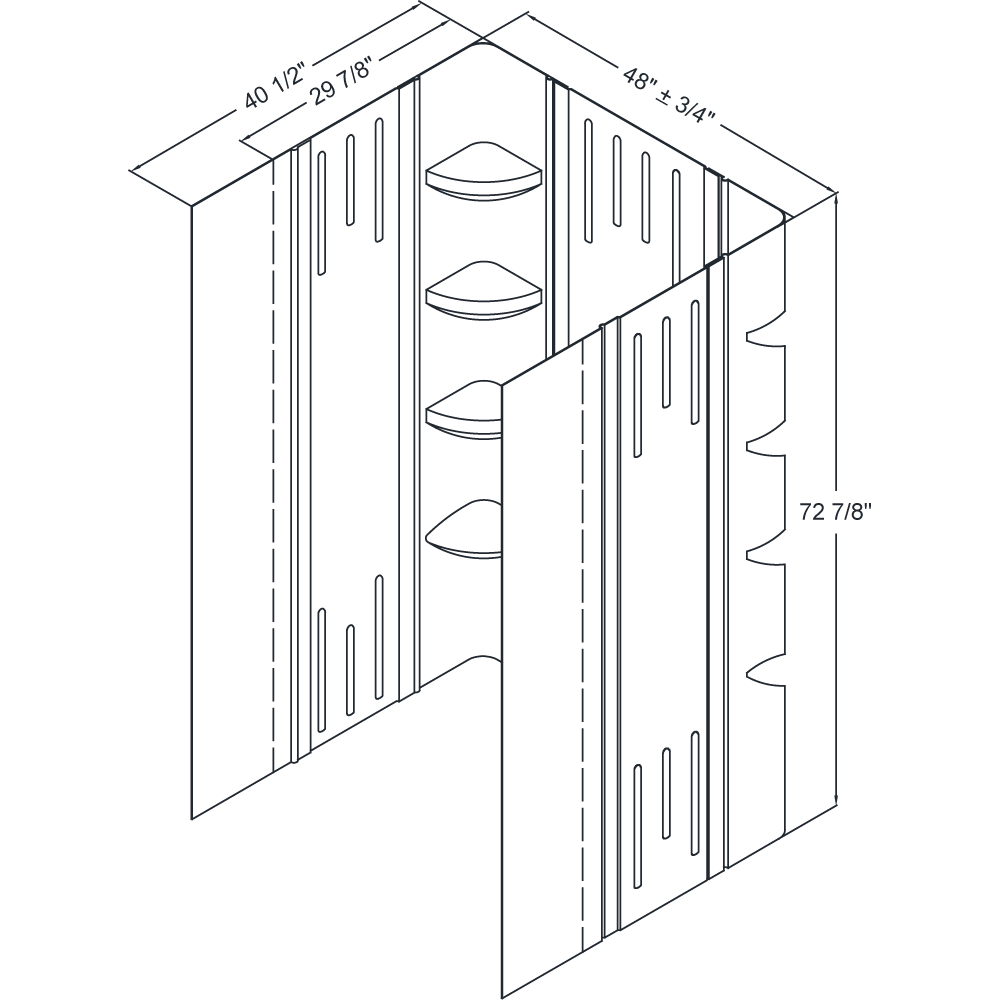

| SHBW-1348723-01 | Acrylic back wall for 36" x 48" single threshold base |
29-7/8" to 40-1/2" x 46-1/4" to 47-3/4" x 72-7/8" |

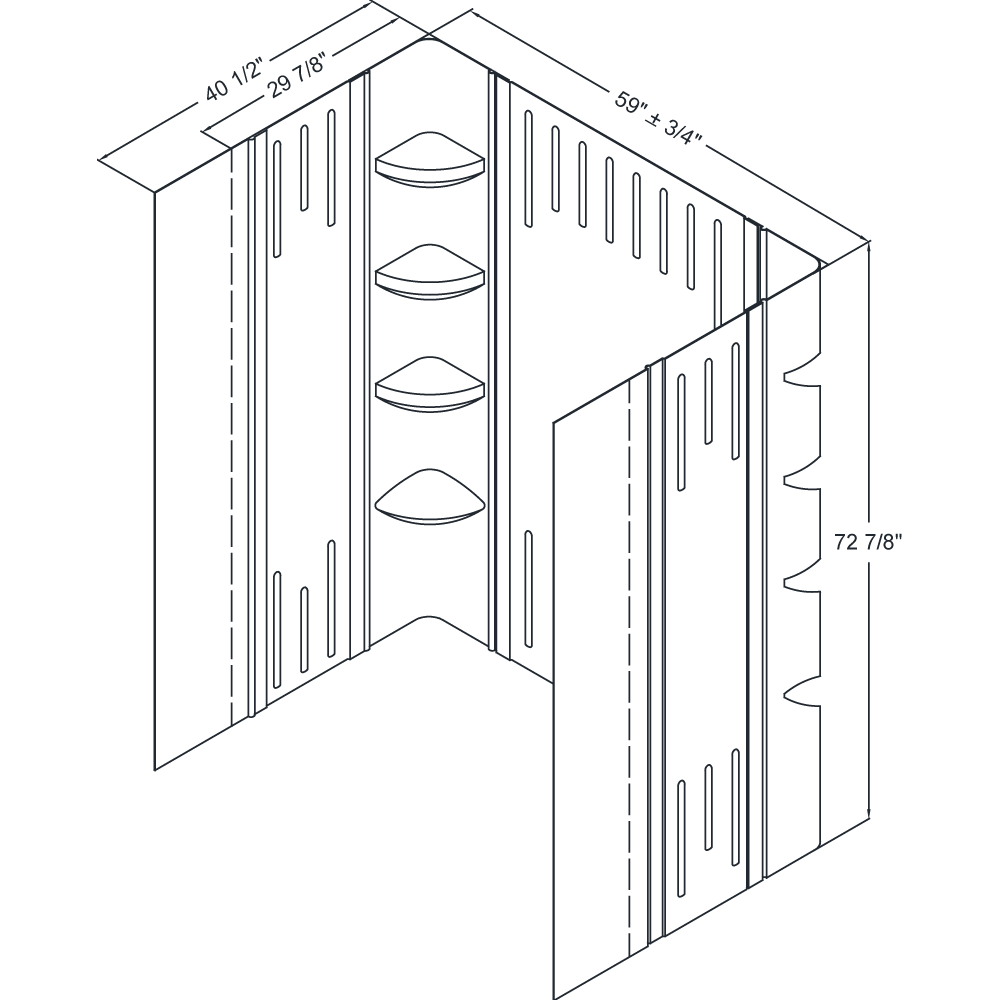

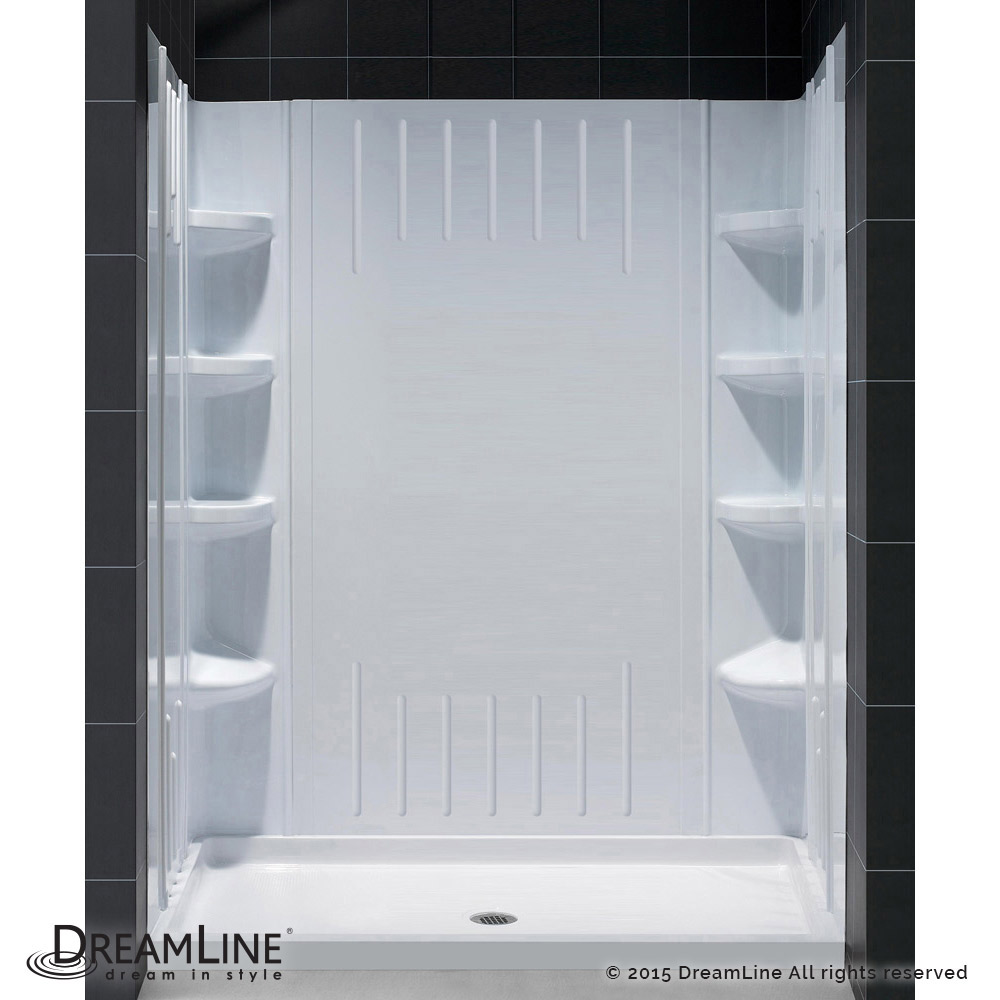

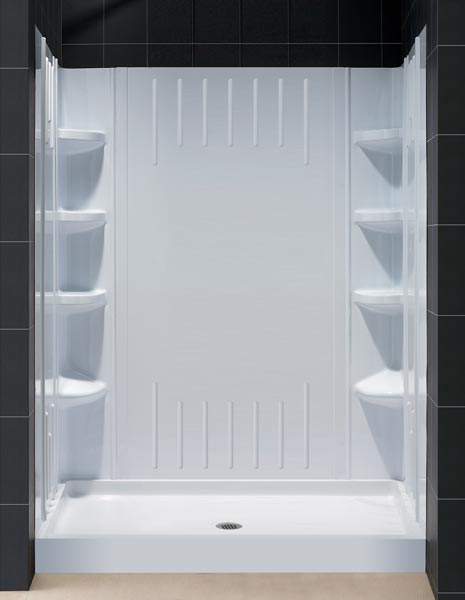

| SHBW-1360723-01 | Acrylic back wall for 60" single threshold base |
29-7/8" to 40-1/2" x 58-1/4" to 59-3/4" x 72-7/8" |
