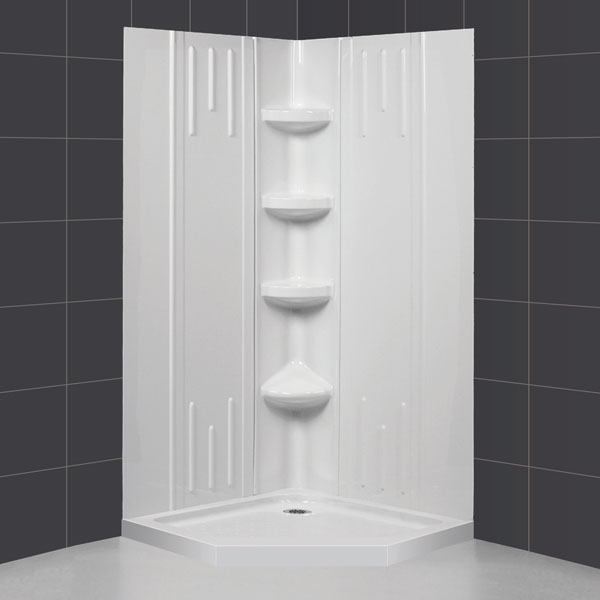

QWALL-2
Shower Base & Backwall Kit
PRODUCT SPECIFICATION
-
Items included: Neo Shower Base and QWALL-2 Shower Backwall Kit
- Color: White
- High quality scratch and stain resistant acrylic
- Slip-resistant textured floor for safe showering
- Integrated tile flange for easy installation and waterproofing
- Fiberglass reinforcement for durability
- cUPC certified
- Drain not included
- Plumbing codes vary by state; DreamLine is not responsible for code compliance
- Color: White
- Assembly required
- 3 integrated shelves and a convenient corner foot rest
- Unique water tight connection of side walls, back panel and corner panels
- Trim-to-Size design for shower enclosures wall dimensions 29 7/8 in. to 40 1/2 in. width from corner; height of the glass not to exceed 72 7/8 in.
- The acrylic wall systems are specially designed to be installed over existing solid surface not directly against the studs
- Shower Base: Limited lifetime manufacturer warranty
- Shower Backwalls: Limited 1 (one) year manufacturer warranty
Neo Shower Base:
QWALL-2 Shower Backwall Kit:
Product Warranty:
DreamLine combines a SlimLine™ shower base with coordinating shower backwall panels to create a convenient kit that can transform a shower space. The SlimLine shower base incorporates a low profile design for a sleek modern look. The wall panels have a tile pattern and are easy to install with a trim-to-size fit. Both the shower panels and shower base are made from durable and attractive Acrylic/ABS advanced materials. DreamLine kits offer an ideal solution for any bathroom renovation project.
for individual technical drawing
| Kit Model | Items included | Base Size | |
| Shower Backwall | Base | ||
| DL-6138-01 |
SHBW-1241720 trim-to-size 29-7/8 to 40-1/2 x 72-7/8 |
DLT-2036360 | 36" x 36" x 2-3/4" |
| DL-6139-01 | DLT-2038380 | 38" x 38" x 2-3/4" | |
| DL-6140-01 | DLT-2040400 | 40" x 40" x 2-3/4" | |
| DL-6141-01 | DLT-2042420 | 42" x 42" x 2-3/4" | |
