Aqua Ultra
Tub Door with Return Panel
PRODUCT SPECIFICATION
- 30 in. D x 57 to 60 in. W x 58 in. H
- Finished walls are required for accurate shower opening width measurement
- Frameless glass design
- Model consists of one hinged door, one stationary side glass panel and one return panel
- Anodized aluminum U shaped wall profile allows 1/4 in. out-of-plumb (vertical) adjustment
- Reversible for a right or left door opening installation (door has a convenient towel bar)
- Quality 5/16 in. (8mm) thick ANSI certified clear tempered glass
- Hardware available in Chrome or Brushed Nickel finish
- Door width: 48 in.
- Door walk-in: 24 in.
- Stationary panel(s): 23-7/8 in.
- Return panel: 30 in.
- Wall studs or other reinforcement behind finished walls required for hinge installation
- Professional installation recommended
- Limited lifetime manufacturer warranty
Note: To minimize possible water escaping outside the bathing area, position the shower head opposite of the door opening aimed at the tiled walls, fixed glass panel or straight down towards the shower floor

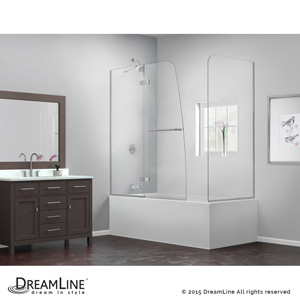

The Aqua Ultra Tub Door with Return Panel creates a beautiful bathtub enclosure for an amazing value. The Aqua Ultra shines with a frameless design and a striking curved silhouette that is far from ordinary. The innovative wall profile provides out-of-plumb adjustment during installation. The Aqua Ultra Tub Door with Return Panel delivers a healthy dose of fresh style to your bath space.
