AquaFold
Tub Door with Return Panel
PRODUCT SPECIFICATION

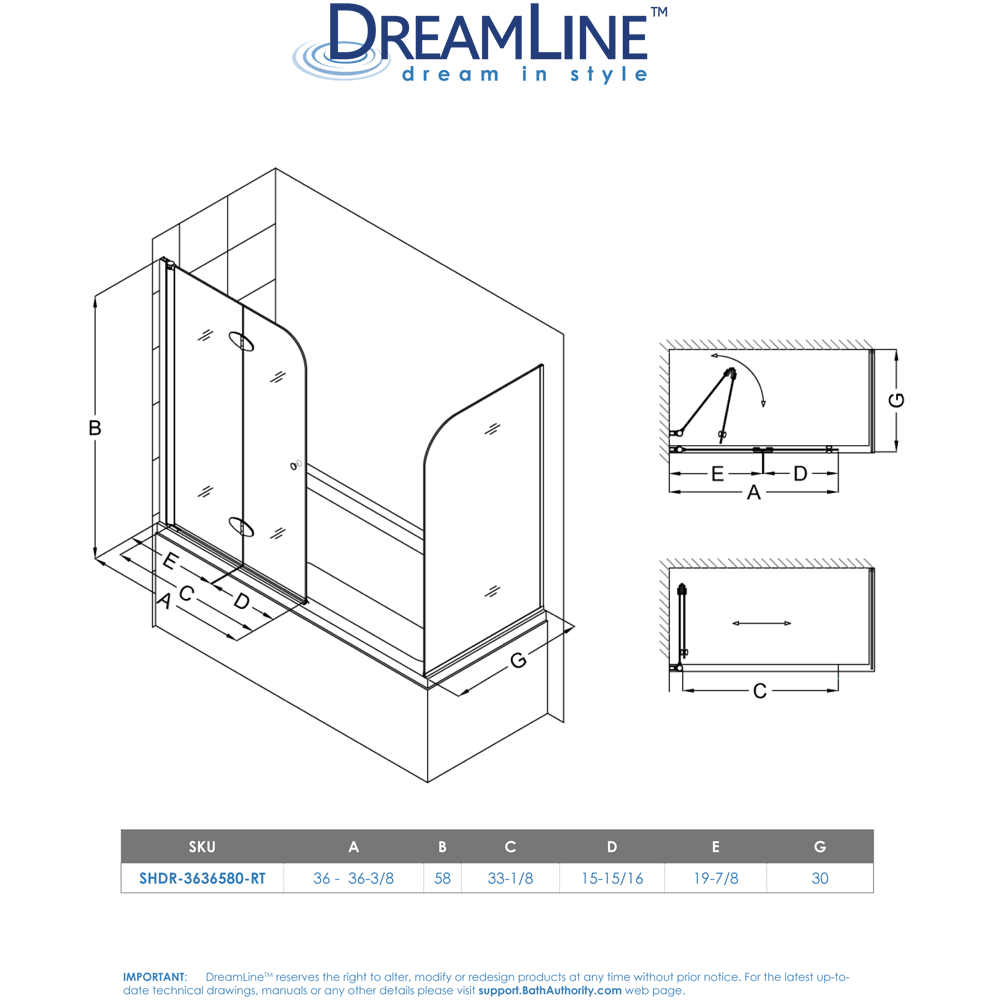

- 30 in. D x 56 to 60 in. W x 58 in. H
- Chrome finish hardware
- Finished walls are required for accurate shower opening width measurement
- Frameless glass design
- Unique bi-fold tub door with trackless system
- Anodized aluminum full length pivot hinge allows a 3/8 in. out of plumb (vertical) adjustment
- Reversible for a right or left door opening
- Quality 1/4 in. (6mm) thick ANSI certified clear tempered glass
- Wall studs or other reinforcement behind finished walls required for hinge installation
- Door glass panel width: 36 to 36-3/8 in.
- Door walk-in: 33-1/8 in.
- Stationary panel(s): 19-7/8 in.
- Return panel: 30 in.
- Professional installation recommended
- Limited Lifetime Manufacturer Warranty
Note: To minimize possible water escaping outside the bathing area, position the shower head opposite of the door opening aimed at the tiled walls, fixed glass panel or straight down towards the shower floor

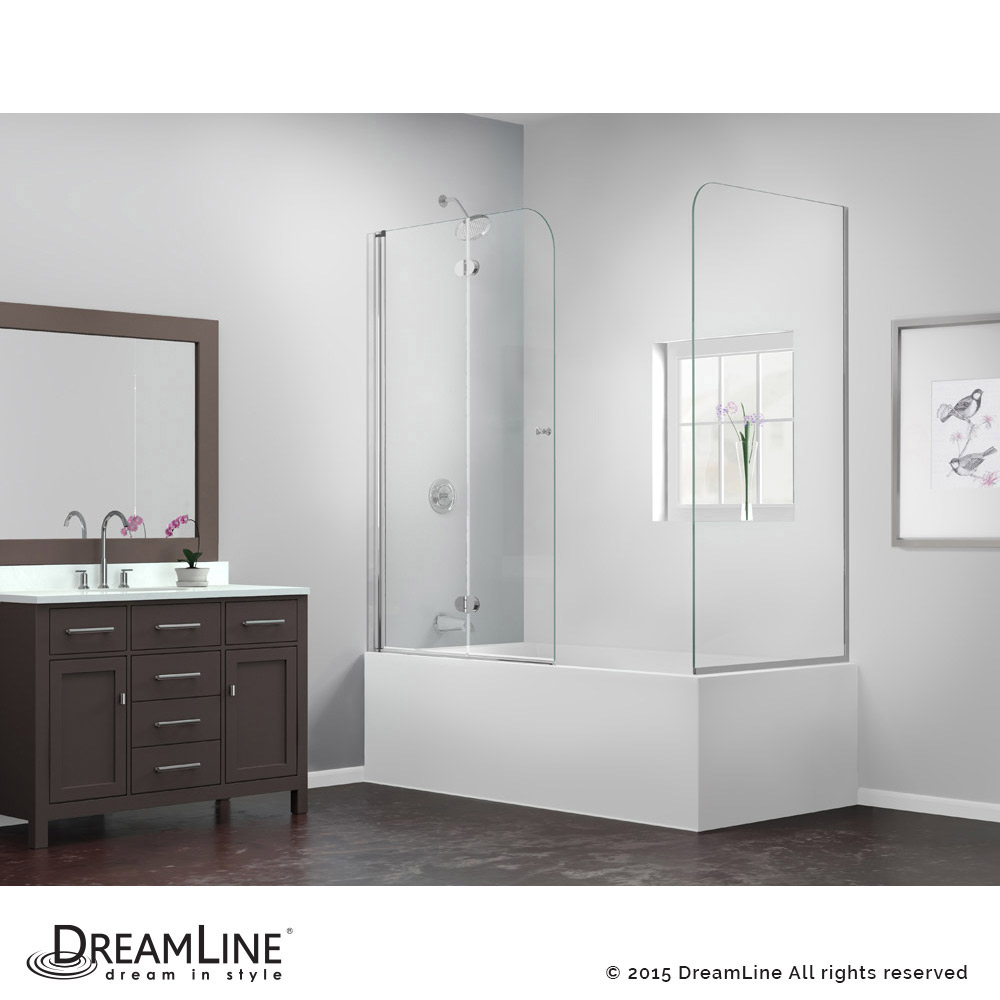

The AquaFold Tub Door with Return Panel creates a beautiful bathtub enclosure for an amazing value. This model is the perfect combination of function and style. The door makes a statement with a sophisticated curved silhouette, while the practical feature of the bi-fold action offers convenience. The Return Panel provides additional splash coverage. Choose the AquaFold tub door for a unique and modern look at an attractive price point.
