Butterfly
Shower Door, Base & Backwalls
PRODUCT SPECIFICATION
-
Items included: Butterfly Shower Door, Single Threshold Shower Base and QWALL-5 Shower Backwall Kit
- 1/4 in. (6 mm) clear tempered glass
- Chrome hardware finish
- Frameless glass design
- Out-of-plumb installation adjustability: Up to 3/4 in. per side
- Space-saving frameless bi-fold door
- Anodized aluminum profiles and guide rails
- Reversible for right or left door opening installation
- Material: Tempered Glass, Aluminum
- Tempered glass ANSI certified
- Color: White
- High quality scratch and stain resistant acrylic
- Slip-resistant textured floor for safe showering
- Integrated tile flange for easy installation and waterproofing
- Fiberglass reinforcement for durability
- cUPC certified
- Drain not included
- Center, right, left drain configurations
- Color: White
- Assembly required
- Designed to be installed over existing finished surface (not directly against studs)
- Includes 2 glass corner shelves

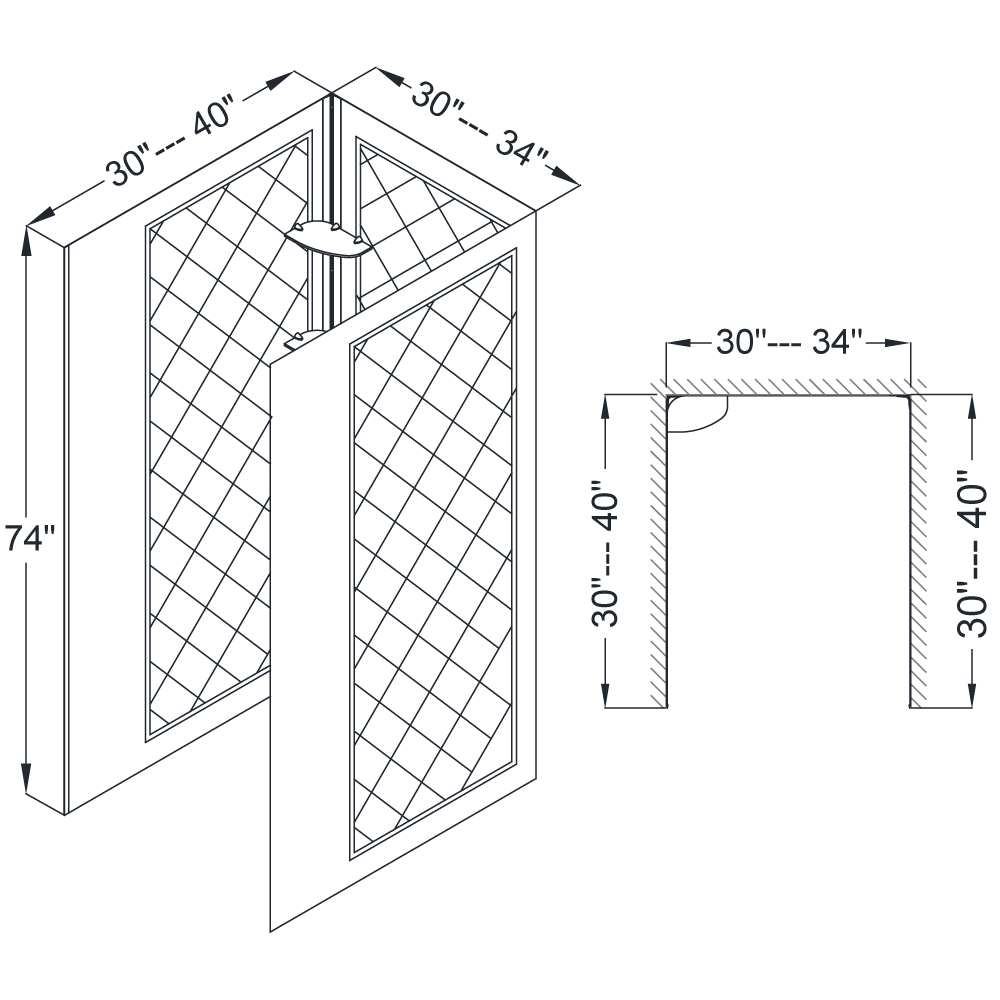

- Attractive tile pattern
- Unique water tight connection of panels
- Durable acrylic/ABS construction
- Trim-to-Size sidewall design
- Must be trimmed during installation
- Limited lifetime manufacturer warranty
- Shower Backwalls: Limited 1 (one) year manufacturer warranty
Butterfly Shower Door:
Single Threshold Shower Base:
QWALL-5 Shower Backwall Kit:
Product Warranty:
This smart kit from DreamLine offers the perfect solution for a bathroom remodel or tub-to-shower conversion project with a BUTTERFLY™ bi-fold shower door, universal shower backwall panels and a coordinating SlimLine™ shower base. The BUTTERFLY shower door is comprised of two sets of bi-fold panels that provide an ample walk-in opening while saving space. The SlimLine shower base incorporates a low profile design for a sleek modern look, while the shower backwall panels have a tile pattern. Choose a beautiful and efficient DreamLine shower kit to completely transform a shower space.
for individual technical drawing| Kit Model Number |
Kit Size, in. D x W x H* |
Items Included | |||
| Base | Base Configuration | Backwalls | Door | ||
| DL-6129C | 32 x 32 x 76-3/4 | DLT-1132320 | Center Drain | SHBW-1434743-01 | SHDR-4532726 |
| DL-6130C | 36 x 36 x 76-3/4 | DLT-1136360 | Center Drain | SHBW-1438743-01 | SHDR-4536726 |
